• Rated power: 25W.
• Rated resistance range: 0.1~50KΩ, tolerance:+1%, +5%.
• Solder lug terminals.
• Gold aluminum housing, wound with high-quality alloy wire, small in size.
• High temperature resistance, good heat dissipation performance, strong load capacity, easy to install.
• Supports Personalized Special Customization.

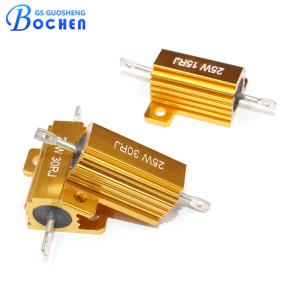

The RX24 25W Wirewound Resistor is a compact, high-performance solution designed for demanding electronic and industrial applications. Built with a durable alloy resistance wire wound on a robust core, it ensures excellent stability and long-term reliability even under continuous load. Its resistance range from 0.1Ω to 50KΩ with ±1% or ±5% accuracy meets diverse circuit design requirements.
The resistor is enclosed in a gold anodized aluminum body, which significantly enhances thermal transfer efficiency and supports installation on cooling plates, making it suitable for environments with elevated temperatures or mechanical stress. Its encapsulation with non-combustible, inorganic insulating material provides outstanding vibration endurance and electrical safety.
With solder lug terminals for secure connections and easy assembly, the RX24 25W resistor is widely adopted in power converters, industrial controllers, elevator systems, audio equipment, and test instruments. Featuring excellent heat dissipation, strong load capability, and customizable specifications such as terminal types or mechanical design, it offers flexibility for both standard and special-purpose projects.
| Rated power at 25℃(W) | Range (Ω) | Tolerance (%) | T.C.R. | Voltage (V) | |
| With heatsink | Without heatsink | ||||
| 5 | 3 | 0.01~1K | ±1, ±5 | ±100, ±50 | 1000 |
| 10 | 8 | 0.01~1.5K | |||
| 20 | 12.5 | 0.01~10K | |||
| 30 | 15 | 0.01~27K | |||
| 50 | 20 | 0.01~33K | |||
| 75 | 45 | 0.01~39K | |||
| 100 | 50 | 0.01~51K | 2000 | ||
| 150 | 55 | 0.01~56K | |||
| 200 | 50 | 0.01~62K | |||
| 250 | 60 | 0.01~68K | |||
| 300 | 75 | 0.01~75K | |||
| 500 | 200 | 0.01~82K | |||
The RX24 25W Wirewound Resistor is widely applied across various industries due to its compact size, excellent heat dissipation, and reliable performance. It is commonly used in power supply systems, motor drives, and frequency converters for precise load control and protection. In the elevator and transportation sector, it provides stable braking resistance and overload protection. It is also adopted in audio equipment, LED lighting, and broadcasting systems where consistent power handling is required. Additionally, the RX24 25W is suitable for industrial automation, renewable energy equipment, and test instrumentation, making it a versatile solution for demanding environments.
